Fiber Optic Pigtail SC(PC/UPC/APC) Single-Mode/multimode
- group name
- Fiber optic patch cord(cable)/pigtail
- Min Order
- 1 piece
- brand name
- CY
- model
- QY-FPG-SC
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, MoneyGram, Westem Union
- update time
- Fri, 08 Dec 2017 09:53:24 GMT

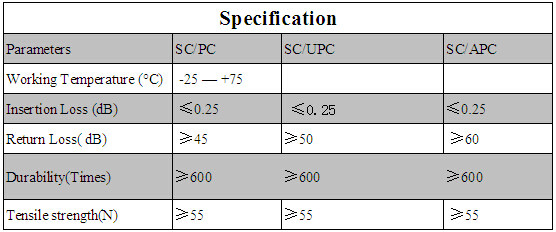

Paramtents
Connector: FC Polish Mode: UPC, PC, APC
Packging & Delivery
-
Min Order1 piece
Briefing
SC, LC, ST, FC, E2000 9/125 micron single-mode fiber optic pigtail; SC, LC, ST, FC OM1 62.5/125 & 50/125 OM2, OM3, OM4 pigtail
Detailed
Fiber optic pigtail is a cable that only one end is terminated with connectors, the other end can be melted with optical fiber for a permanent connection. SC connector has a ceramic ferrule of 2.5 mm. Its light weight and cost-effective features enable different applications of SC fiber optic pigtail.
custom-made specification pigtails can be offered
Description:
Fiber cable assemblies are designed and manufactured in ISO9001 registered facility. The product range covers both single mode and multimode patch cords and pigtails.
which are fully qualified to RoHS standards. E-2000 fiber cable assemblies result in super performance on insertion loss as well as exceptional repeatability.
Features:
1. Low insertion loss, high return loss;
2. High environmental stability;
3. Superior qualified standard PC, APC, UPC, SPC polishing
4. Available fiber cable diameters: Φ0.9, Φ2.0, Φ3.0mm;
5. Simplex, duplex or multi-fiber
6. Pigtail Types: Bundle(bunch), Ribbon fan-out,Waterproof; Armored
7. Connector Types: LC, FC, SC, ST, MU, MTRJ, E2000, MPO, MTP
8. Fiber cores: Simplex, Duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24fibers, 48fibers etc.
9. Fiber Mode: Singlemode (G.652), Multimode (OM1/OM2/OM3/OM4)
10. Low insertion loss and back reflection loss
11. Good exchangeability; Good Durability
12. High temperature stability
13. Compliant to IEC, TIA/EIA, NTT and JIS specifications
14. welcome Customized specifications
Application:
CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
custom-made specification pigtails can be offered
Description:
Fiber cable assemblies are designed and manufactured in ISO9001 registered facility. The product range covers both single mode and multimode patch cords and pigtails.
which are fully qualified to RoHS standards. E-2000 fiber cable assemblies result in super performance on insertion loss as well as exceptional repeatability.
Features:
1. Low insertion loss, high return loss;
2. High environmental stability;
3. Superior qualified standard PC, APC, UPC, SPC polishing
4. Available fiber cable diameters: Φ0.9, Φ2.0, Φ3.0mm;
5. Simplex, duplex or multi-fiber
6. Pigtail Types: Bundle(bunch), Ribbon fan-out,Waterproof; Armored
7. Connector Types: LC, FC, SC, ST, MU, MTRJ, E2000, MPO, MTP
8. Fiber cores: Simplex, Duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24fibers, 48fibers etc.
9. Fiber Mode: Singlemode (G.652), Multimode (OM1/OM2/OM3/OM4)
10. Low insertion loss and back reflection loss
11. Good exchangeability; Good Durability
12. High temperature stability
13. Compliant to IEC, TIA/EIA, NTT and JIS specifications
14. welcome Customized specifications
Application:
CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX network
